Configure a VM for a lab Intune

Context

I wanted to enroll a virtual machine (VM) for my lab Intune.

To do this, I chose to use Hyper-V to familiarize myself with this tool instead of continuing with VMware Workstation, which I always used at IPI school.

Prerequisites

To use Hyper-V on my PC, the following prerequisites are required:

• A PC running one of the following versions of Windows: Windows 10/11 Enterprise, Windows 10/11 Education, or Windows 10/11 Pro.
• A 64-bit processor that supports Second Level Address Translation (SLAT).
• A processor compatible with virtualization extensions, such as Intel VT-x.
• At least 4 GB of RAM, though 8 or 16 GB is recommended for better performance.

Enable Hyper-V using optionalfeatures.exe

I ran PowerShell as Administrator to execute the following command, which forces Windows' Boot Configuration Data (BCD) to load the hypervisor automatically at startup.

bcdedit /set hypervisorlaunchtype auto

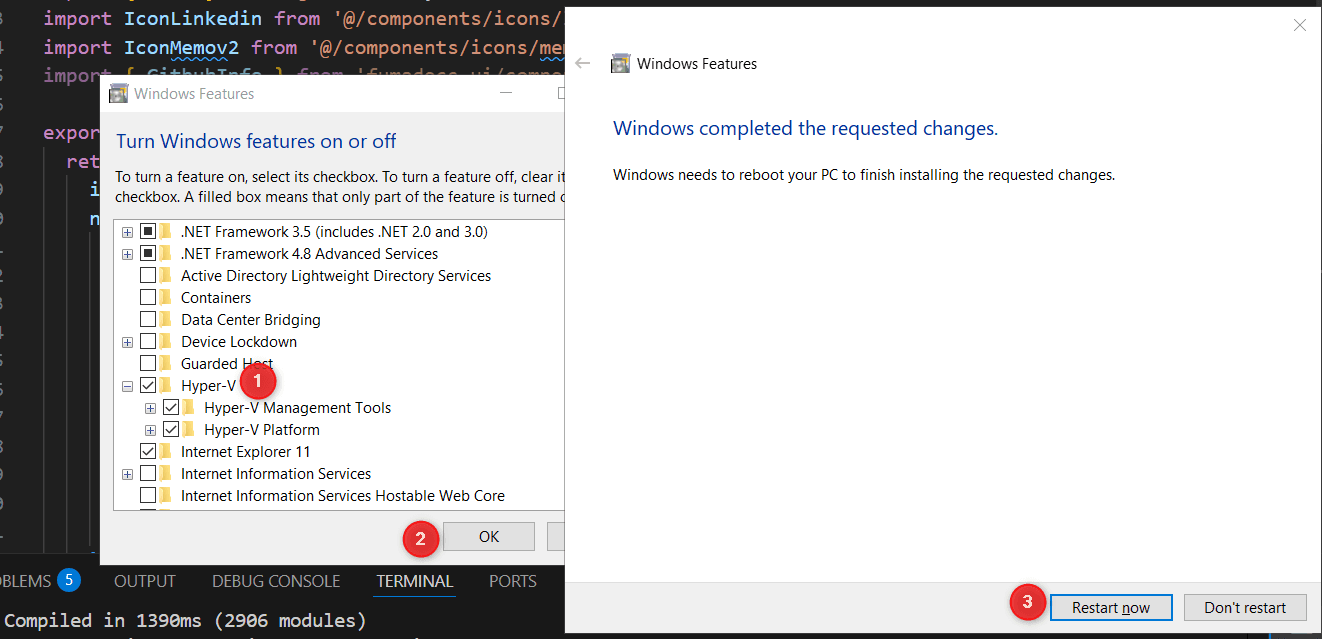

Next, I ran the optionalfeatures.exe command to enable Hyper-V and restarted my PC.

Check systeminfo

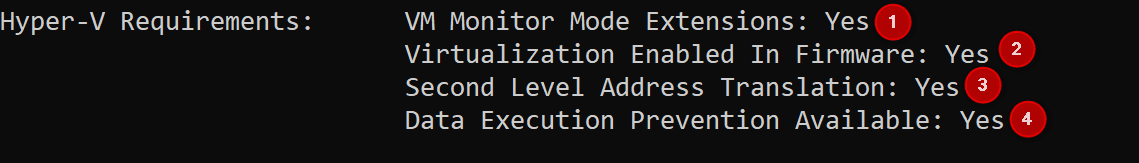

Before starting, I ran the systeminfo command to ensure everything was ready on my PC.

Hyper-V Manager

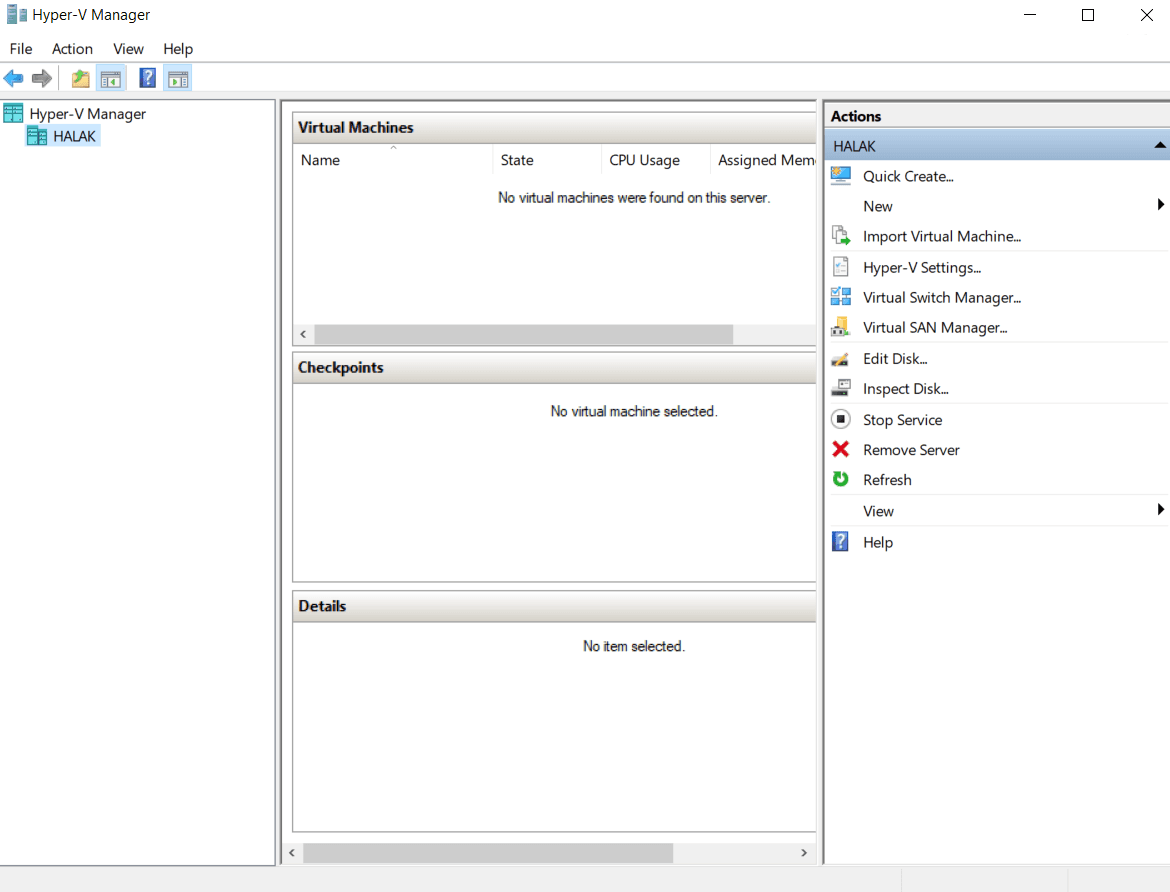

After rebooting, I could see the Hyper-V Manager.

Configure a Virtual Network Switch

Hyper-V offers three types of virtual switches, each with specific use cases:

1. External Virtual Switch
   This type of switch allows the virtual machine to use one of the physical network adapters on my PC (RJ45 Ethernet or Wi-Fi). This gives the VM access to the same network connection as my PC, including Internet access.

2. Internal Virtual Switch
   With this type of switch, the virtual machine can communicate with the Hyper-V host (my PC) and other virtual machines connected to the same switch. However, it will not have access to the external network connection of my PC.

3. Private Virtual Switch
   This switch offers a higher level of isolation. Virtual machines connected to this type of switch can only communicate with each other, without interaction with the Hyper-V host or the external network.

To enroll my virtual machine, it needs Internet access.

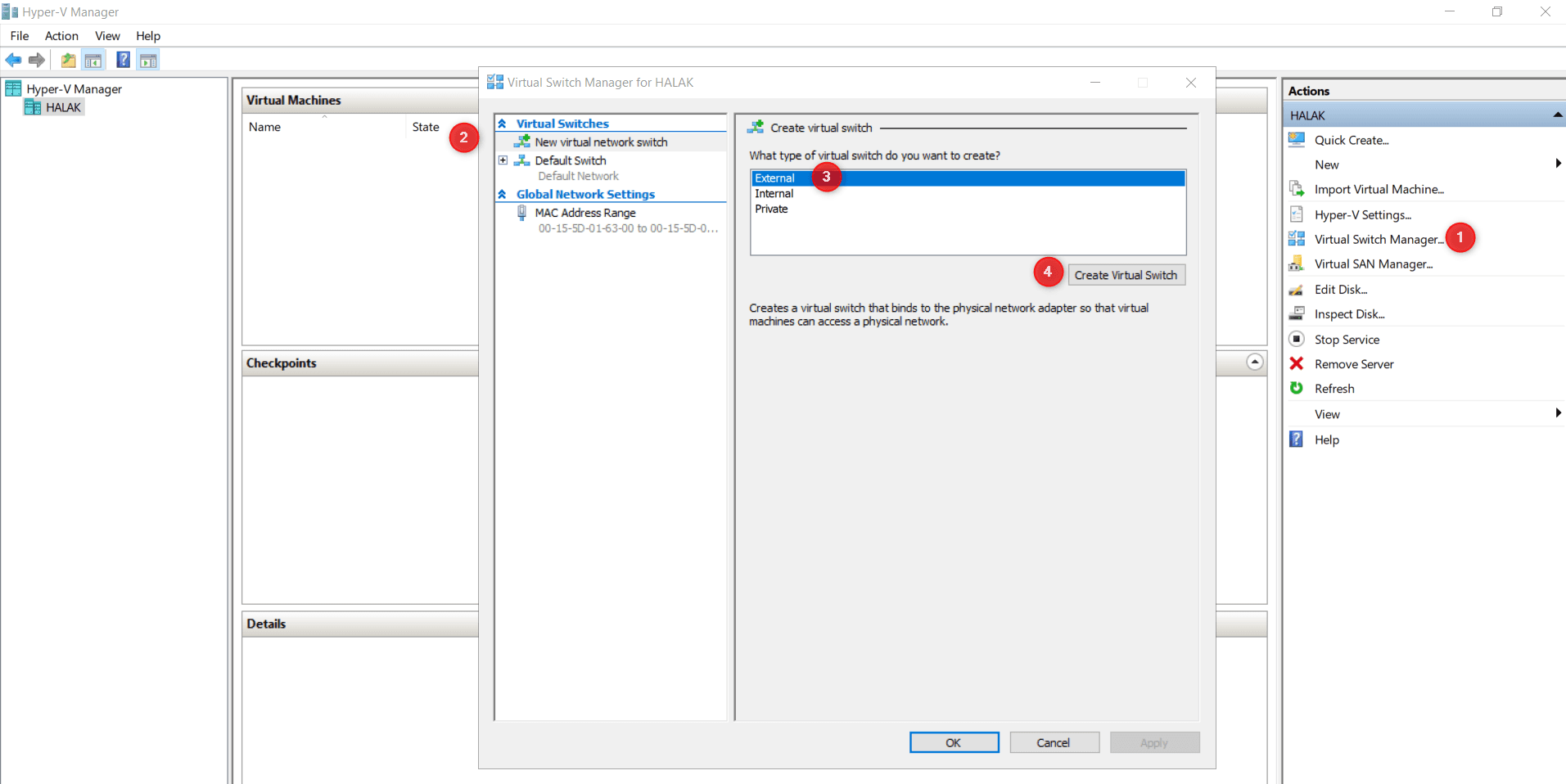

So, I created an "External" virtual switch.

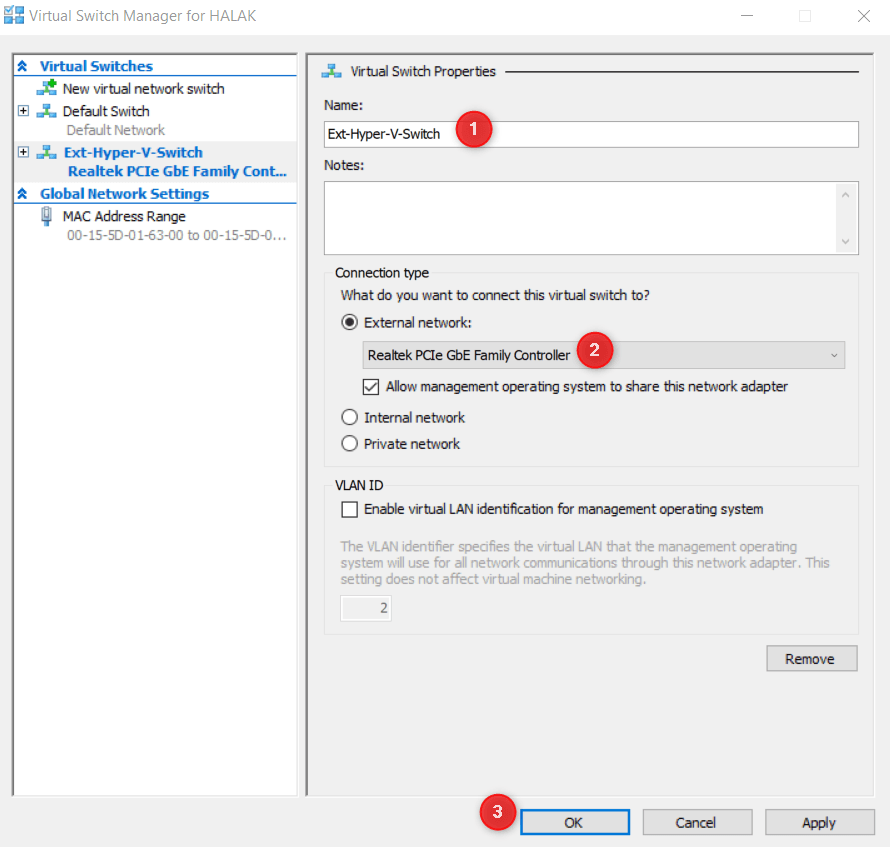

I selected my network adapter (RJ45).

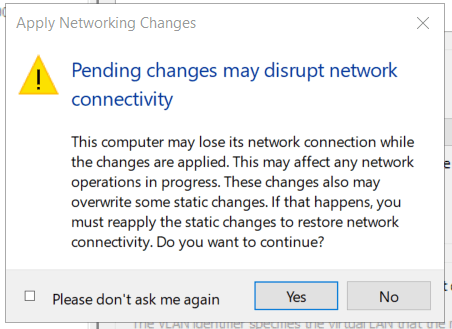

Then I applied the changes.

Creating a VM for my lab Intune

Instead of using the "Quick Create" feature in Hyper-V, I preferred to manually download the ISO from Microsoft and perform the installation myself.

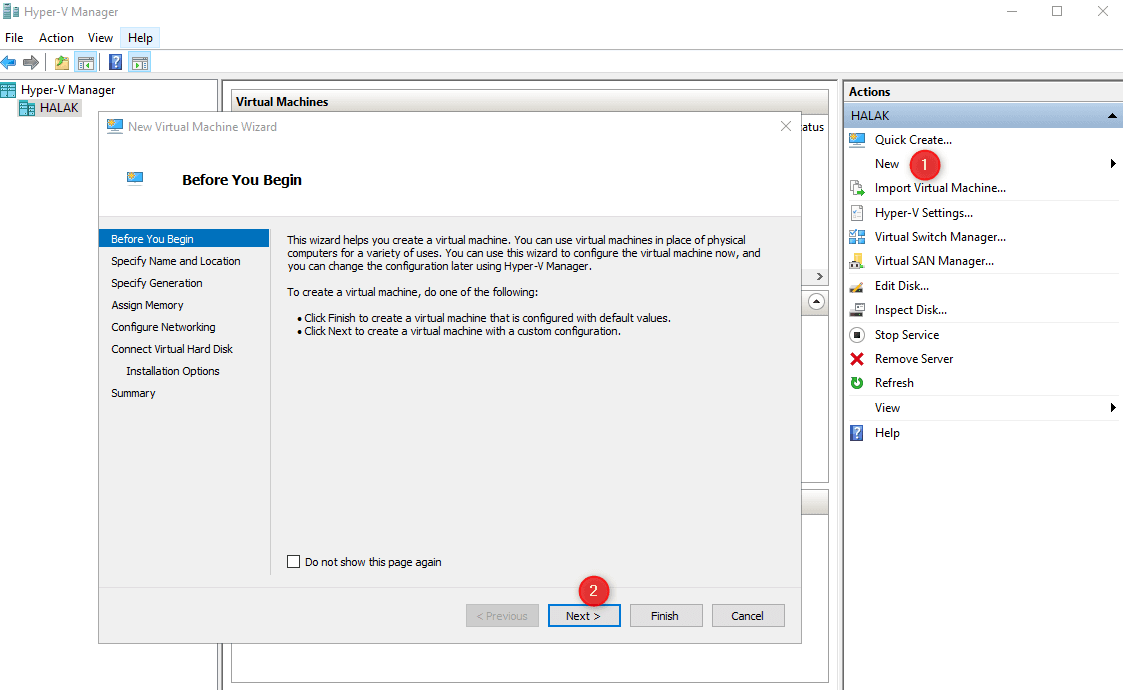

Then, I clicked on "New > Virtual Machine."

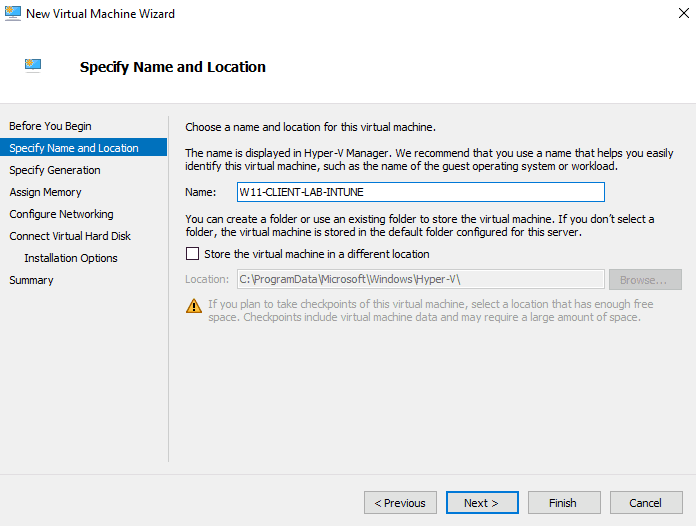

I named the VM.

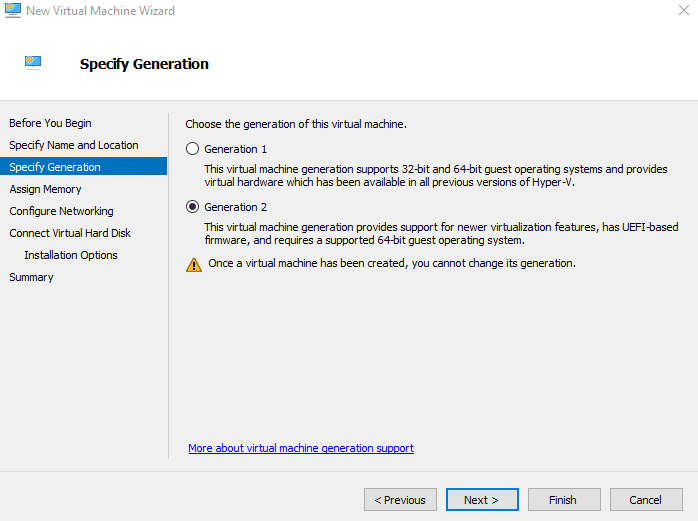

I chose Generation 2.

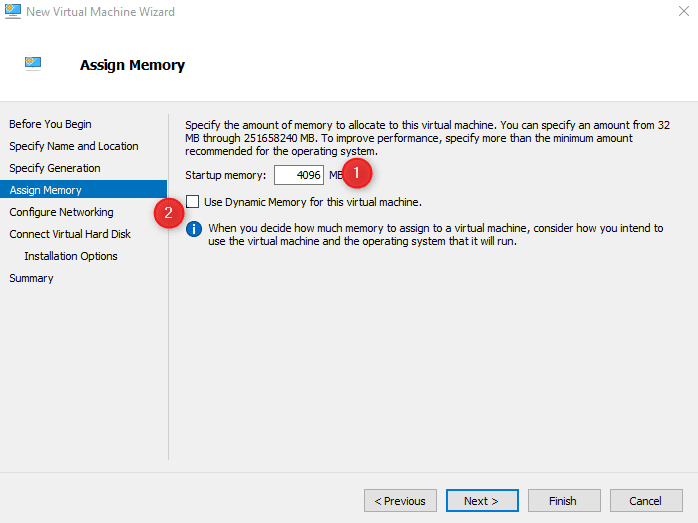

For RAM, I allocated 4 GB and unchecked the dynamic memory option because I didn’t want the VM to use more than 4 GB, as I fixed this value.

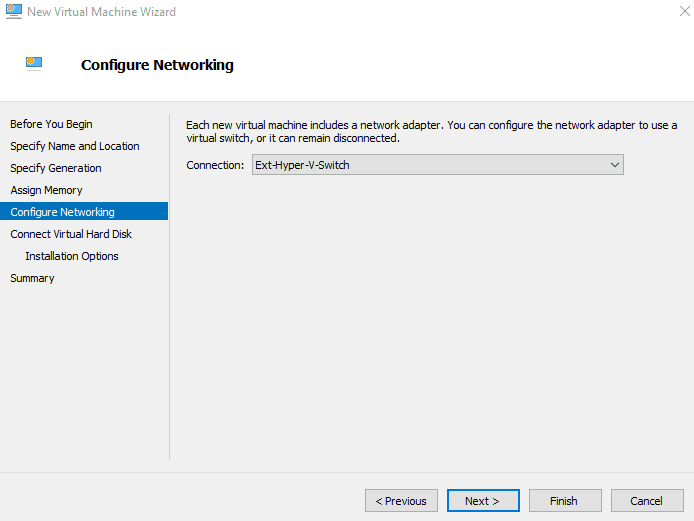

I selected the switch I created earlier.

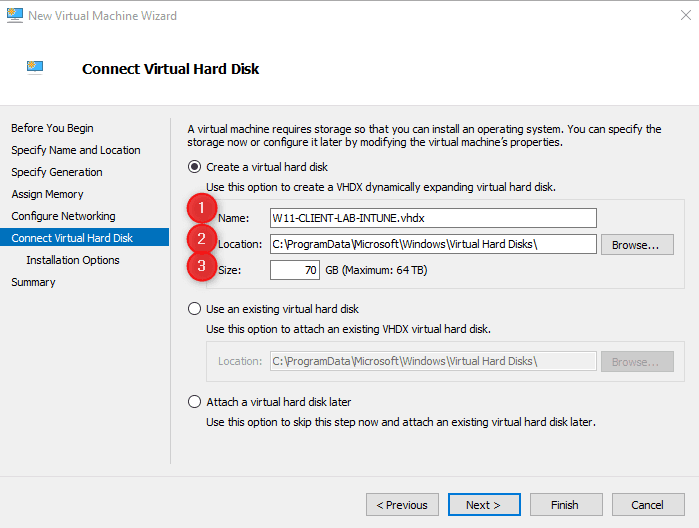

I created the VHDX and allocated 70 GB for storage.

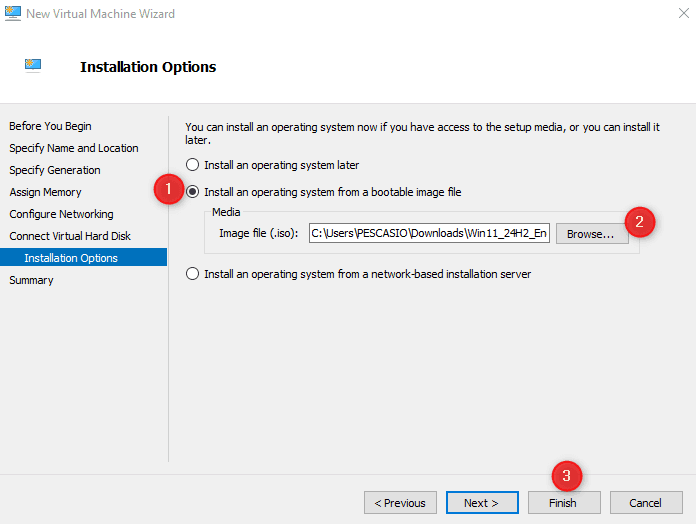

I selected the ISO I downloaded and clicked "Finish."

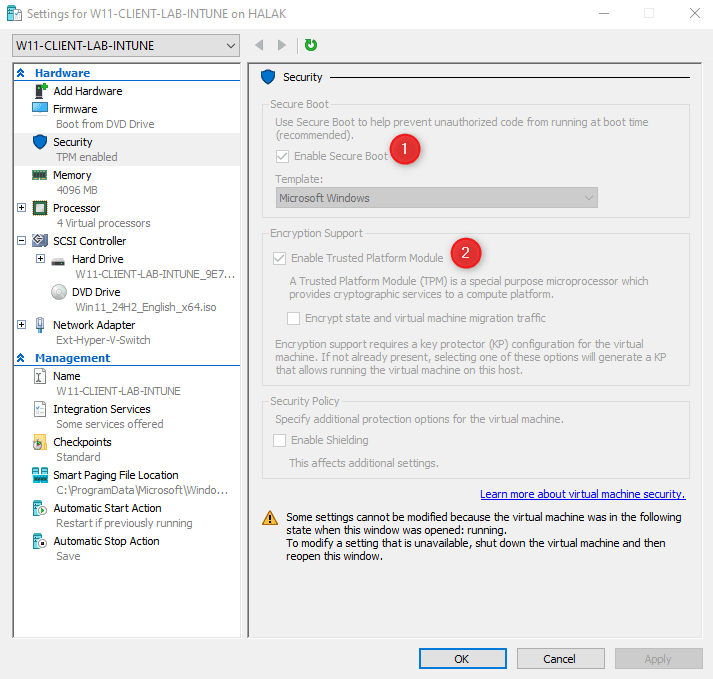

Before starting the VM, I enabled Secure Boot + Trusted Platform Module; otherwise, the installation wouldn’t proceed.

Starting the VM

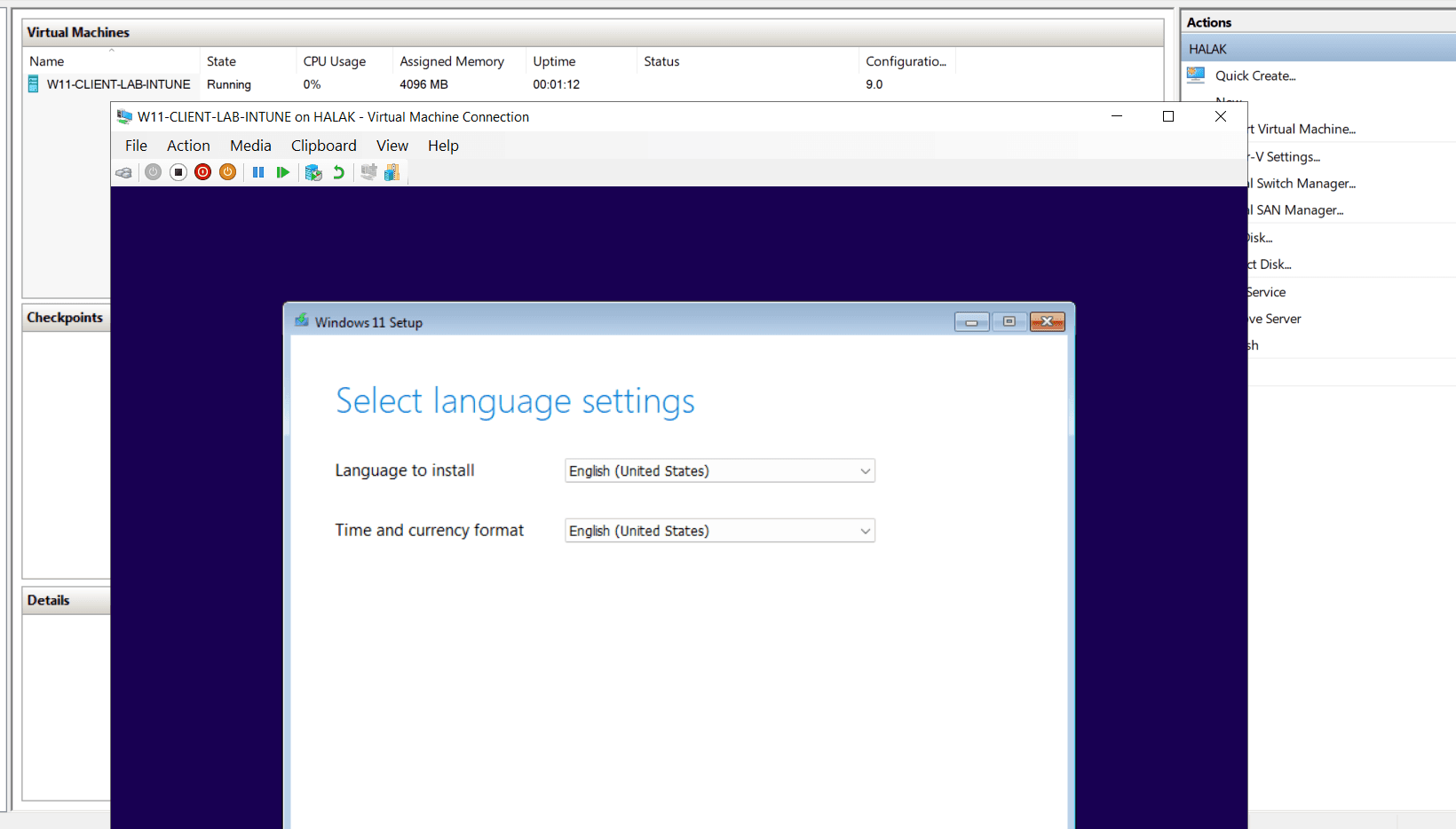

Once the VM was created, I started it and pressed a key continuously to boot from the ISO.

I selected the AZERTY keyboard layout.

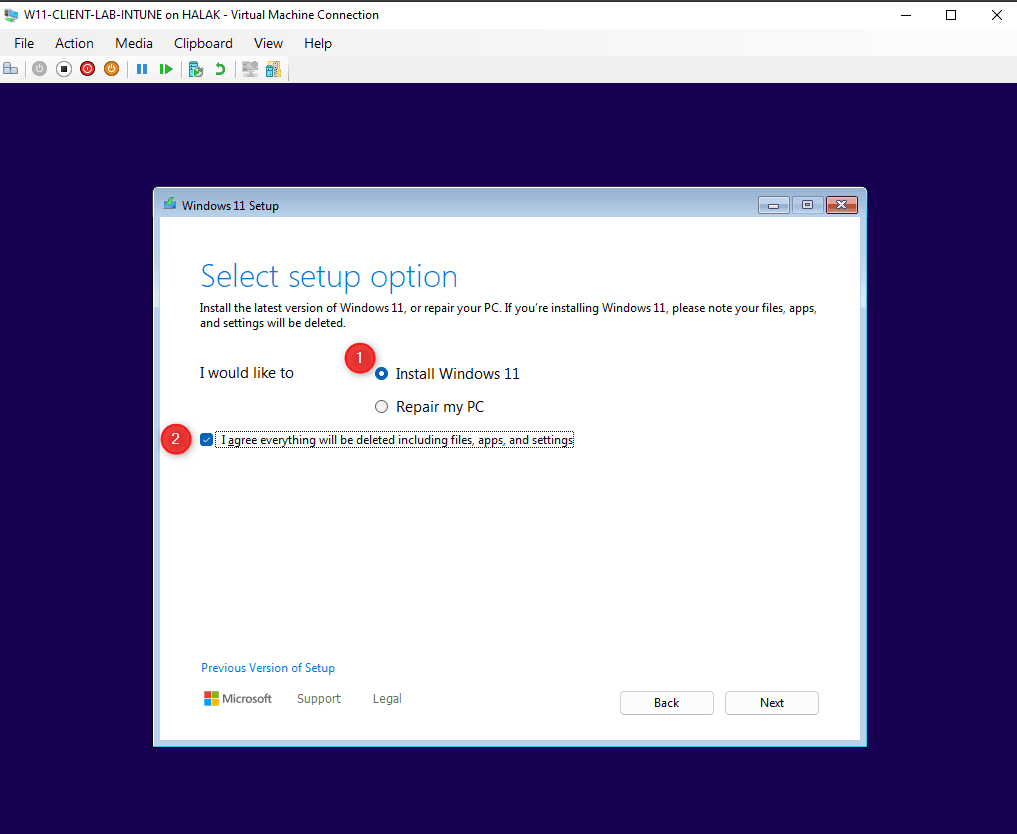

I clicked "Install Windows 11" and checked the box.

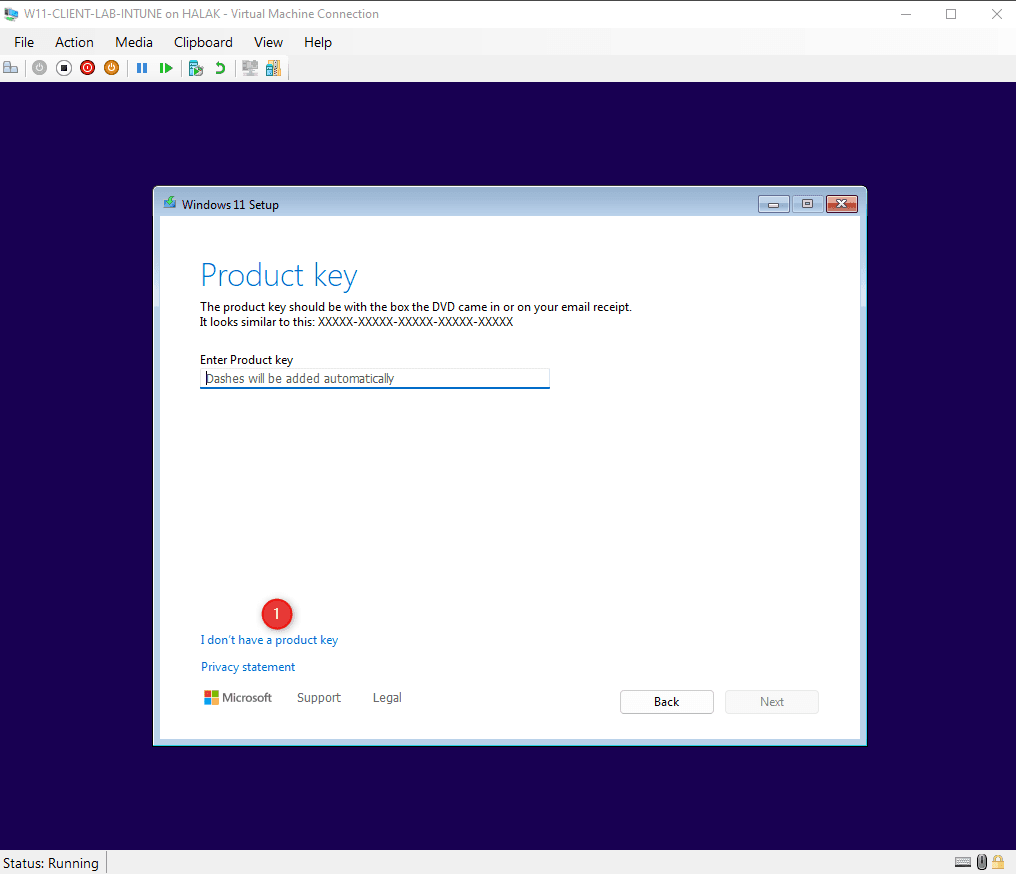

On the product key request page, I chose "I don't have a product key" since this is a test VM.

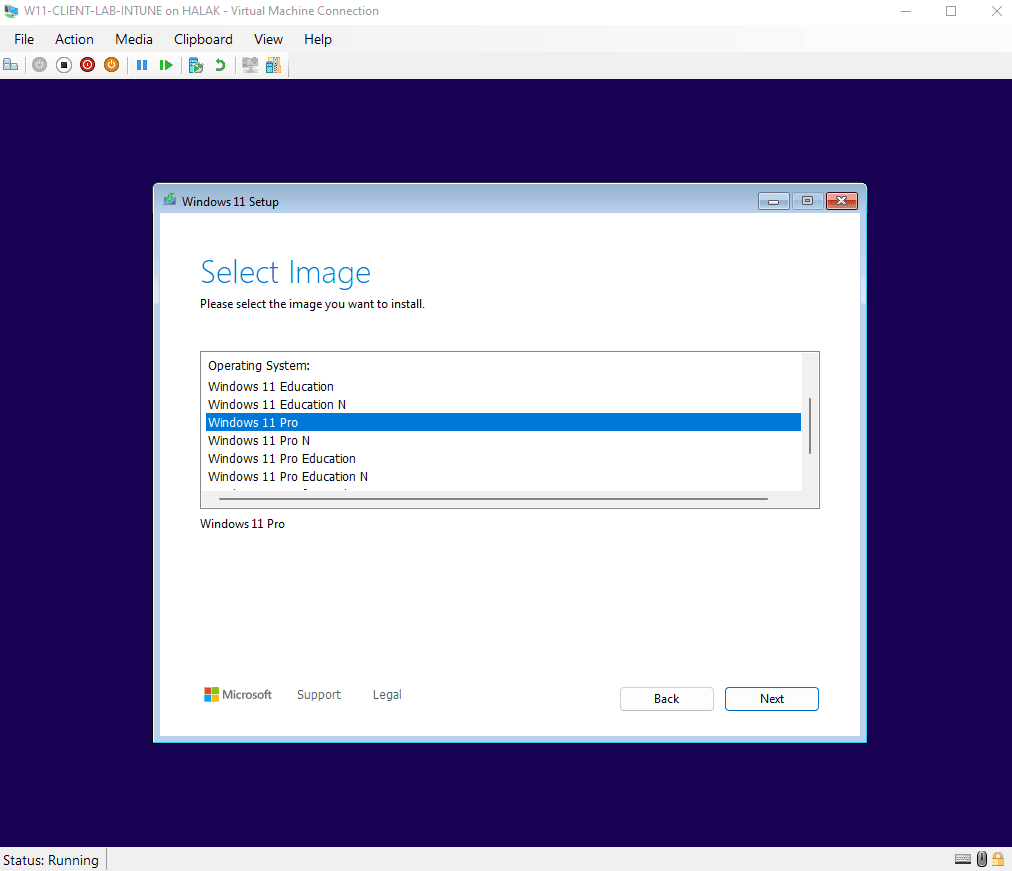

I selected the Pro version. If I kept the Home version, I wouldn’t be able to enroll the VM in my lab Intune.

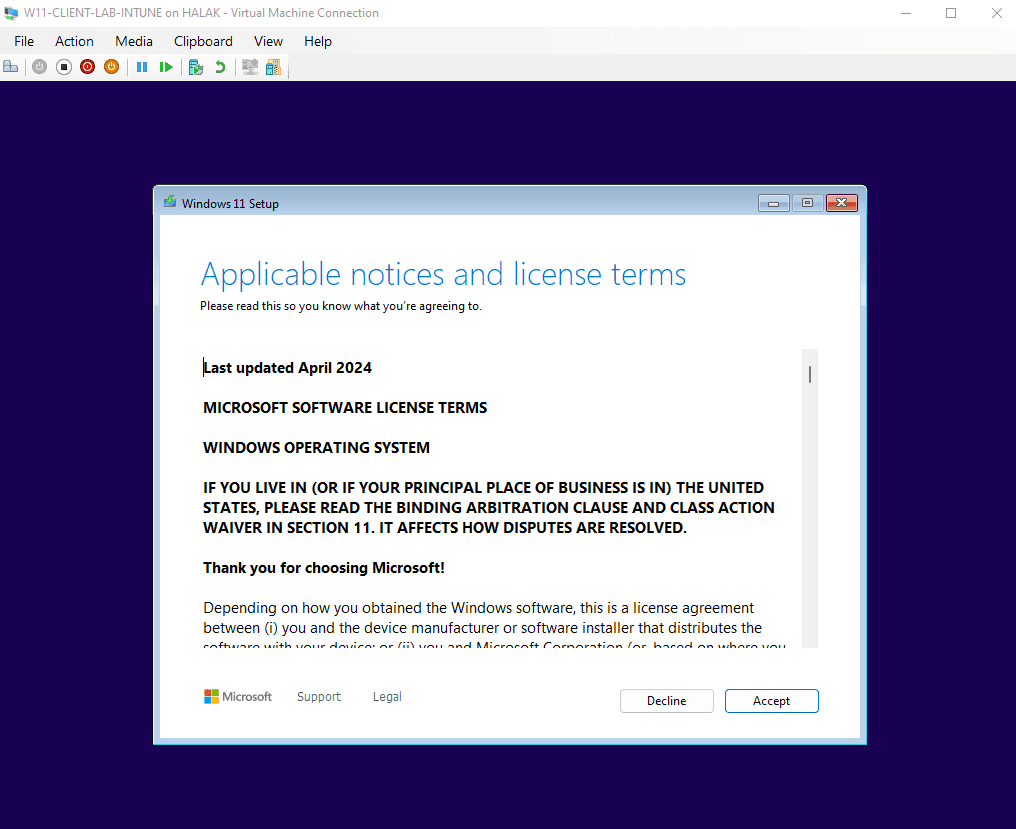

I clicked "Accept."

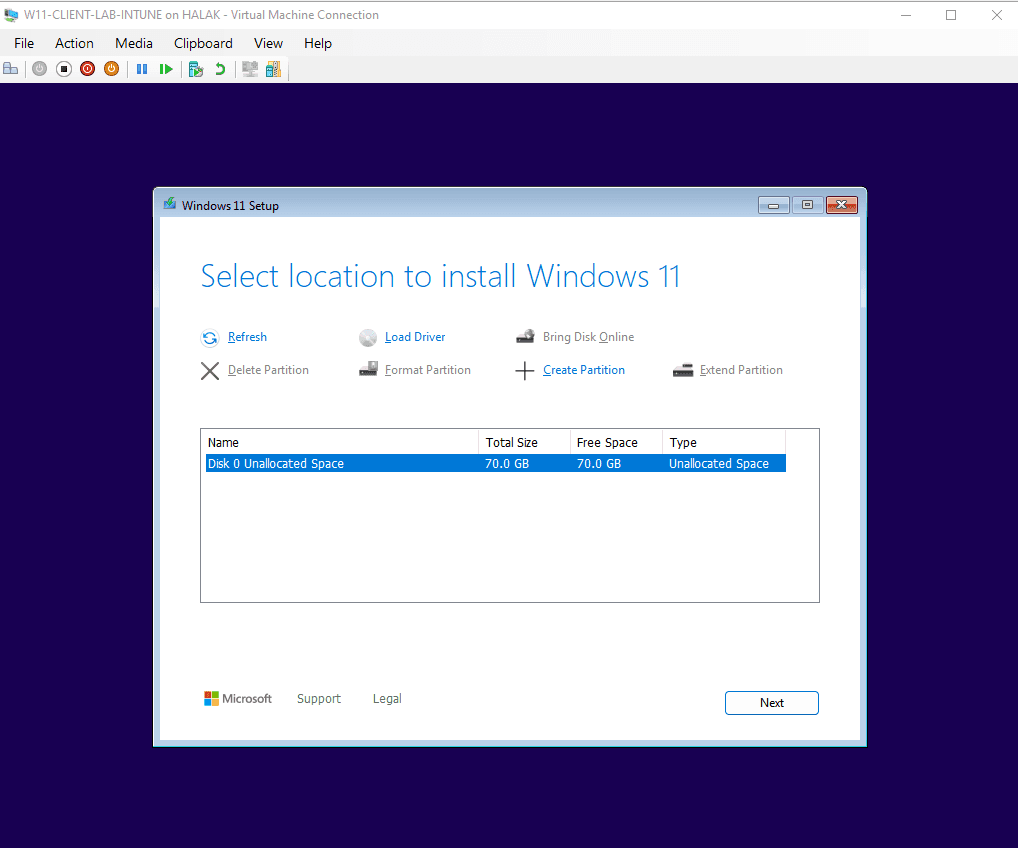

I clicked "Next."

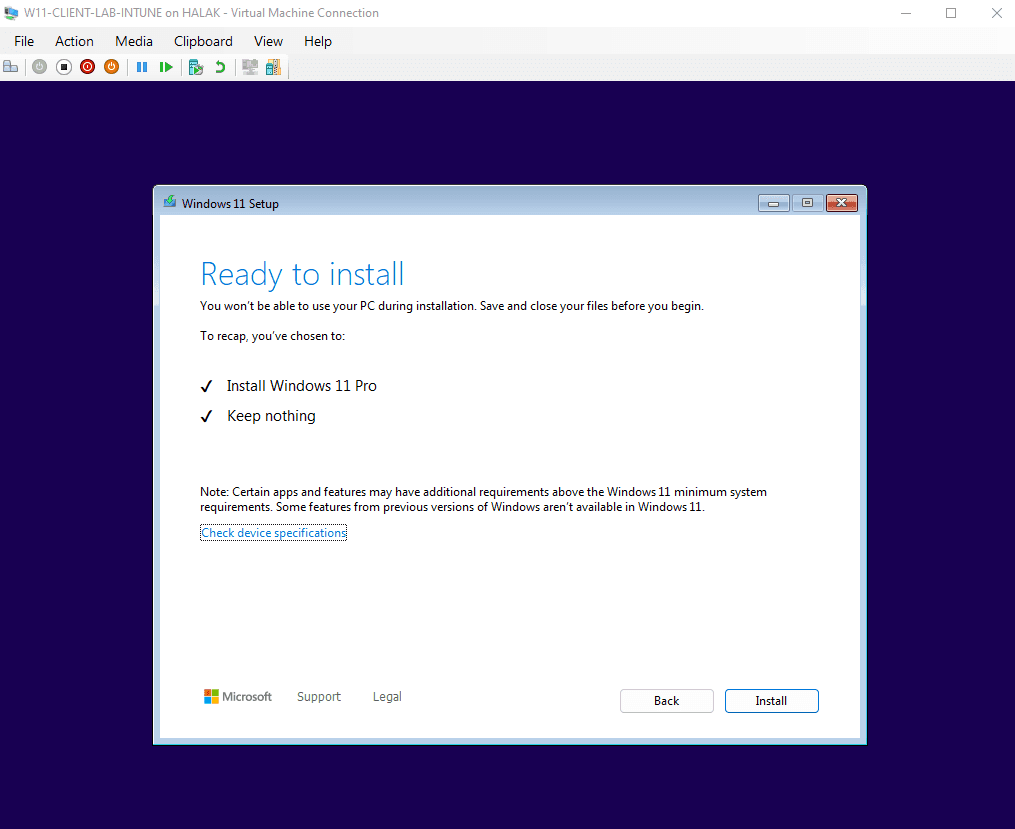

Finally, I clicked "Install."

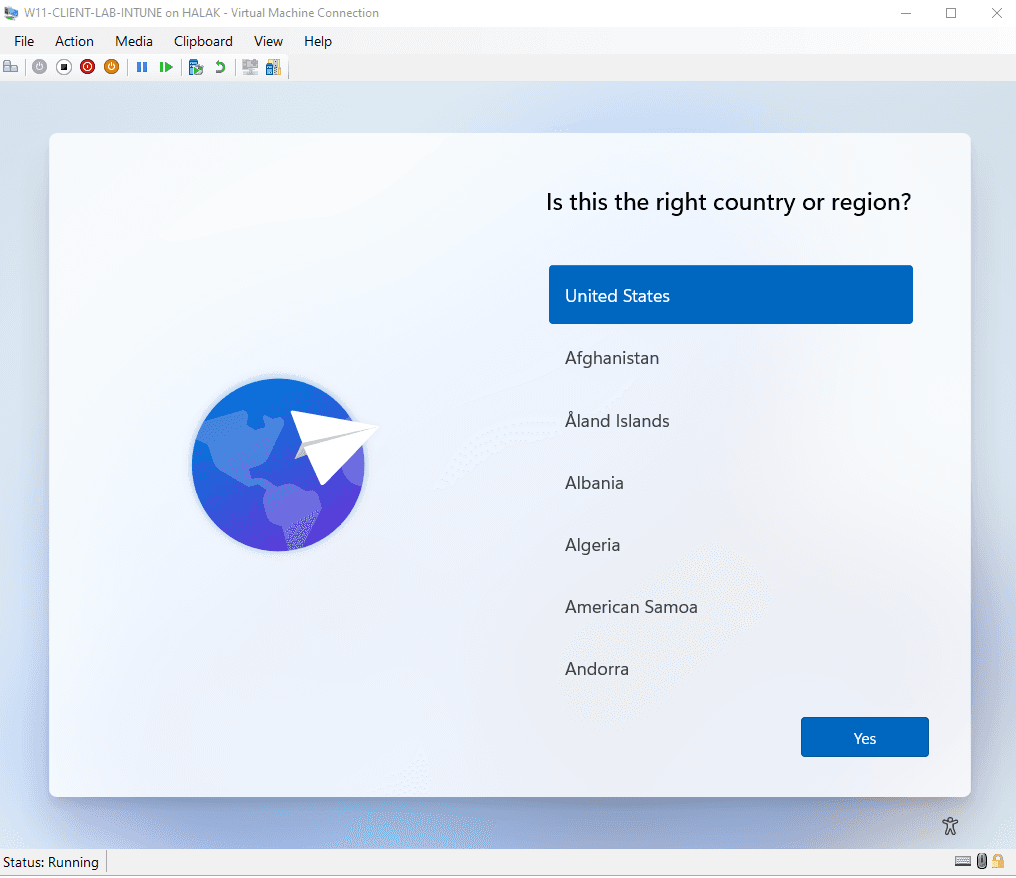

After a coffee break, I arrived at the country selection page.

This is the page where I can start a Windows Autopilot!
